Peugeot 407 2007 read pin & program keys by Lonsdor K518ISE

Possible to program remotes (Peugeot 407 2007) using Lonsdor?

Yep! it’s tested. Lonsdor K518ise is able to read pin codes and program new keys and remotes to 407.

The test: (done by engineers working for cardiagtool.co.uk)

step 1: read pin

step 2: add new keys

step 3: program remotes

in detail…

Step 1: Read Pin Code

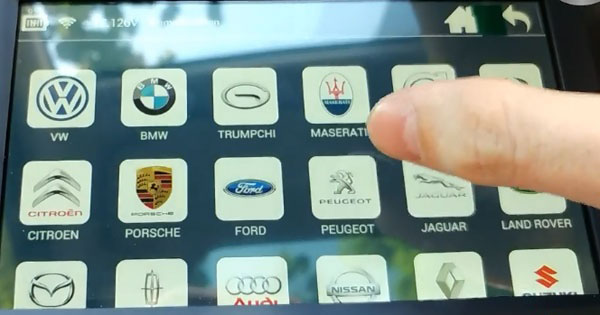

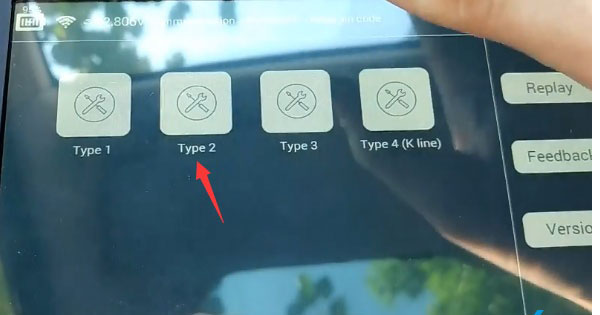

Select Peugeot->Read Pin Code->Type 2

During the function operation, the windshield wiper brushes and the headlight illuminates which is normal
To stop wiper brush, check Help and pull out the corresponding fuse.

Turn ignition switch to ON position

Lonsdor is gonnna to read vehicle information

Reading data and verifying pin

Read pin code success

Step 2: Program a new key

Select Peugeot->Select from vehicle->407->Immobilizer->Program key

Turn on ignition

require to enter pin to access

Turn ignition off and then turn on within 15 seconds

Program complete.

Press YES to program next key or Cancel to quit.

Step 3: Program the remote control

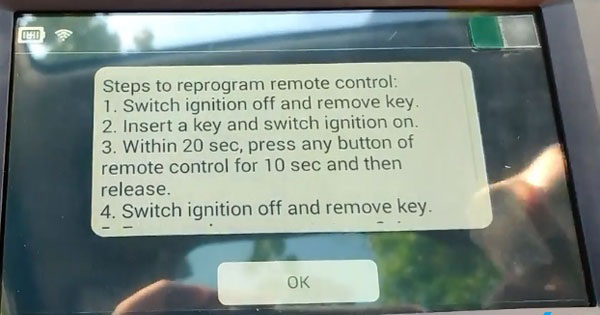

Step to reprogram remote control:
1.Switch ignition off and remove key
2. Insert a key and switch ignition on
3. Press any button of the remote key for 10 seconds and release within 20 seconds.
4. Switch ignition off and remove key
5. For more keys, repeat step 2-4

Job’s done!

Result: success!
