Lonsdor K518 Program VW Polo Smart Remote key

Lonsdor K518 Key Programmer support many Volkswagen group vehicles in key programming,support VW 4th&5th IMMO and reading pin code. Lonsdor K518 also Support VW Polo remote key programming. Here is a case about Lonsdor K518 program VW Polo 2009 4th IMMO NEC+24C32 smart remote key.

Lonsdor K518 key programmer supported VW car list and functions:

Series	Origin	Year	Fuel Type	Function
4th generation immobiliser system	Other	NEC 24C32	Other	Key Programming
4th generation immobiliser system	Other	NEC 95320	Other	Key Programming
4th generation immobiliser system	Other	13 NEC 24C64	Other	Key Programming
5th generation immobiliser system	Other	Other	Other	Key (Smart Key)Programming
4th generation immobiliser system	Other	NEC 24C64	Other	Key Programming
4th generation immobiliser system	Other	13 NEC+24C64Color Screen	Other	Key Programming
4th generation immobiliser system	Other	9S12XHZ512	Other	Key Programming
Touareg	Other	03-07	Other	Key Programming
Phaeton	Other	08-	Other	Key Programming
4th generation immobiliser system	Other	CDC+24C32	Other	Key Programming
2th & 3th generation	Other	Other	Other	Read Pin Code
2th & 3th generation	Other	Other	Other	Key Programming
Remote Key	Other	15 POLO	Other	Remote Key Programming
4th generation immobiliser system	Other	Identify immobiliser type	Other	Identify 4th generation immobiliser system
Remote Key	Other	Other	Other	Remote Key Programming
Touareg	Other	08-11	Other	Key Programming
Phaeton	Other	03-07	Other	Key Programming
4th generation immobiliser system	Other	12 NEC+24C64Color Screen	Other	Key Programming
Remote Key	Other	Other	Other	Central Door Lock(1281)
Remote Key	Other	Other	Other	Central Module(1281)

Program  VW Polo Key information:

Original key: 3-button folding remote key

Frequency: 433MHz

Chip type: Special ID48 chip (TP23)

Device to program: Lonsdor K518 key programmer

Lonsdor K518 Program Details steps:

Connect Lonsdor K518 host with vehicle via OBD diagnostic socket

Select Immobilizer->VAG->4th Immobilizer->Identify Immo type

Lonsdor K518 identified immo type: 4th IMMO

Select NEC 24C32

Then Backup EEPROM and save data

Select Read Immobilizer data

Lonsdor K518 read vehicle information: VIN, CS, PIN, key number and key ID

Select Make Dealer Key

Push card slot on K518 main unit from right direction

Insert new key to be programmed into card slot

Select Key Learn

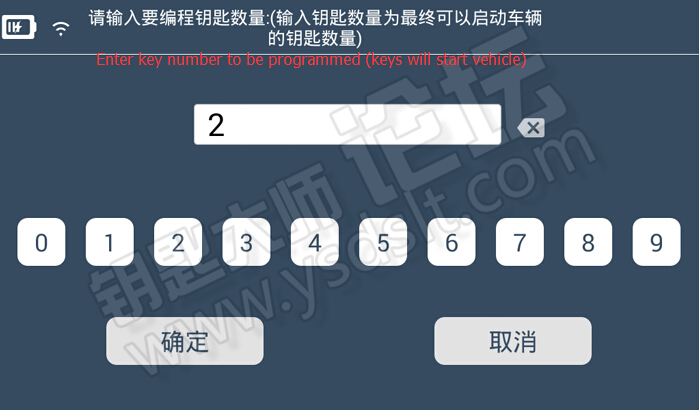

Enter key number to be programmed (keys that will start vehicle )

Insert key and turn ignition on one by one

I.E, Dashboard shows 1-2 means 1 key has been learnt, 2-2 means 2 keys have done

Program success.

Test remote and star car.
